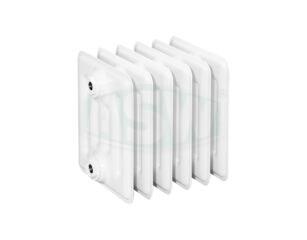

Steel radiator DIN 4703 200/250, painted
H 300 mm D 250 mm
DIN steel radiator in accordance with DIN 4703 and EN 442. Powder-coated version, RAL 9010. Standard hub spacing for easy replacement of old radiators without changing pipe distances. Connection sizes can be adapted with different thread sizes, as necessary (3/8”, 1/2”, 3/4”, 1”). Block design. Elements made of two drawn shell halves with a metal thickness of 1.25mm Pressure stage 6 bar. Factory pressure testing with 7.8 bar. Heat capacity in accordance with EN 442. On-site pressure testing before assembly is necessary. Please order connection plugs and seals separately.
137122
1 Piece(s)
| PU | 1 Piece(s) |
|---|---|
| Number of links | 12 |
| Build height in mm | 300 |
| Build depth in mm | 250 |
| Build length of each element in mm | 600 |
| Approx. installation length incl. connections (mm) | 630 |
| Normalised heating performance EN 442 (75°/65°/20°) | 744 |
| Normalised heating performance EN 442 (70°/55°/20°) | 588 |
| Normalised heating performance EN 442 (55°/45°/20°) | 372 |
| Hub spacing in mm | 200 |
| Heating surface in m2 of each element | 1.92 |
| Empty weight in kg | 18.3 |
| Water capacity in litres per element | 12.9 |
| Weight in kg | 31.2 |
Drawings and downloads
| Z136207.pdf |
