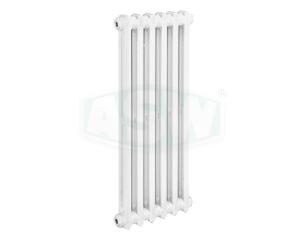

Berlin cast iron radiator DIN 4703 900/70, painted
H 980 mm D 70 mm
DIN cast iron radiator, type Berlin, in accordance with DIN 4703 and EN 442. Powder-coated version, RAL 9010. Standard hub spacing for easy replacement of old radiators without changing pipe distances. Connection sizes can be adapted with different thread sizes, as necessary (3/8”, 1/2”, 3/4”, 1”). Single element design in cast grey iron with a wall thickness of at least 2.5mm. Pressure stage 6 bar. Factory pressure testing with 7.8 bar. Heat capacity in accordance with EN 442. On-site pressure testing before assembly is necessary. Please order connection plugs and seals separately.
336409
1 Piece(s)
| PU | 1 Piece(s) |
|---|---|
| Number of links | 11 |
| Build height in mm | 980 |
| Build depth in mm | 70 |
| Build length of each element in mm | 660 |
| Approx. installation length incl. connections (mm) | 690 |
| Normalised heating performance EN 442 (75°/65°/20°) | 968 |
| Normalised heating performance EN 442 (70°/55°/20°) | 770 |
| Normalised heating performance EN 442 (55°/45°/20°) | 495 |
| Hub spacing in mm | 900 |
| Heating surface in m2 of each element | 2.25 |
| Empty weight in kg | 60.5 |
| Water capacity in litres per element | 7.92 |
| Weight in kg | 68.42 |
Drawings and downloads
| Z335412.pdf |
