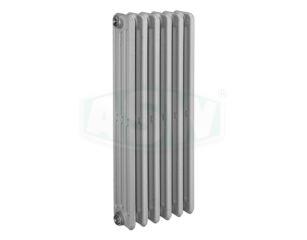

Berlin cast iron radiator DIN 4703 900/160, primed
H 980 mm D 160 mm
DIN cast iron radiator, type Berlin, primed version in accordance with DIN 4703 and EN 442. Standard hub spacing for easy replacement of old radiators without changing pipe distances. Connection sizes can be adapted with different thread sizes, as necessary (3/8”, 1/2”, 3/4”, 1”). Single element design in cast grey iron with a wall thickness of at least 2.5mm. Pressure stage 6 bar. Factory pressure testing with 7.8 bar. Heat capacity in accordance with EN 442. Blocks must be joined on-site according to the assembly instructions. On-site pressure testing before assembly is necessary. Please order connection plugs and seals separately.
210068
1 Piece(s)
| PU | 1 Piece(s) |
|---|---|
| Number of links | 13 |
| Build height in mm | 980 |
| Build depth in mm | 160 |
| Build length of each element in mm | 780 |
| Approx. installation length incl. connections (mm) | 810 |
| Normalised heating performance EN 442 (75°/65°/20°) | 2119 |
| Normalised heating performance EN 442 (70°/55°/20°) | 1690 |
| Normalised heating performance EN 442 (55°/45°/20°) | 1079 |
| Hub spacing in mm | 900 |
| Heating surface in m2 of each element | 5.72 |
| Empty weight in kg | 128.7 |
| Water capacity in litres per element | 19.76 |
| Weight in kg | 148.46 |
Drawings and downloads
| Z208860.pdf |
